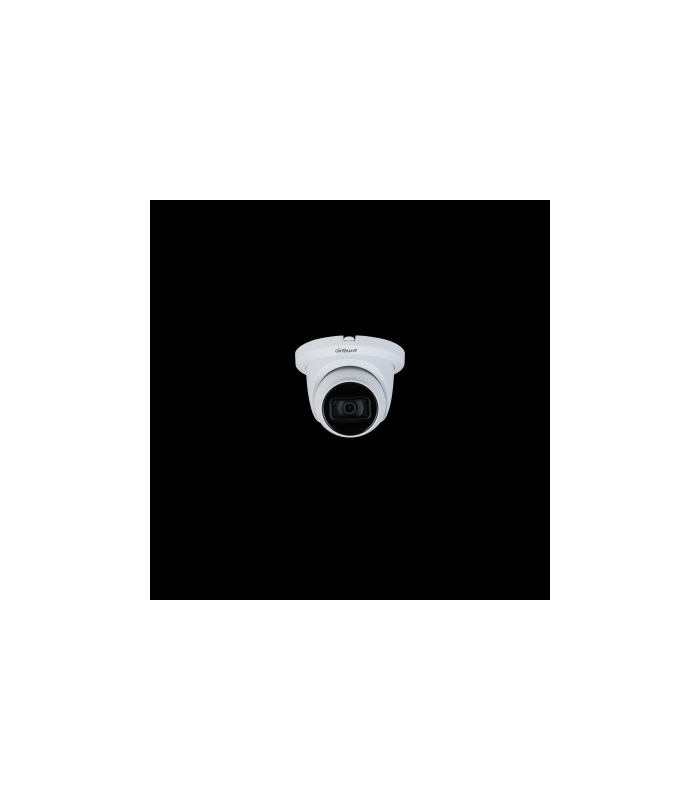

Dahua DH-IPC-HDW3441TMP-AS 4MP IR Fixed focal Eyeball WizSense Network Camera

Camera

Image Sensor

1/3” 4Megapixel progressive CMOS

Max. Resolution

2688 (H) ×1520 (V)

ROM

128 MB

RAM

512 MB

Scanning System

Progressive

Electronic Shutter Speed

Auto/Manual 1/3 s–1/100,000 s

Min. Illumination

0.005 Lux@F1.6 (Color, 30IRE)

0.0005 Lux@F1.6 (B/W, 30IRE)

0 Lux (Illuminator on)

S/N Ratio

Illumination Distance

Illuminator On/Off Control

Illuminator Number

>56 dB

50 m (164.0 ft)

Auto/Manual

2 (Warm LED)

Pan/Tilt/Rotation Range

Pan: 0°–360°; Tilt: 0°–78°; Rotation: 0°–360°

Lens

Lens Type

Fixed-focal

Lens Mount

M12

Focal Length

2.8 mm; 3.6 mm; 6 mm

Max. Aperture

F1.6

Field of View

2.8 mm: Horizontal:103°; vertical: 55°; diagonal: 122°

3.6 mm: Horizontal:84°; vertical: 45°; diagonal: 100°

6 mm: Horizontal:52°; vertical: 28°; diagonal: 61°

Iris Control

Fixed

Close Focus Distance

2.8 mm: 0.9 m (3.0 ft)

3.6 mm: 1.6 m (5.3 ft)

6 mm: 3.2 m (10.5 ft)

DORI Distance

Lens

Detect

Observe

Recognize

Identify

2.8 mm

56m (183.7 ft)

22.4 m (73.5 ft)

11.2 m (36.7 ft)

5.6 m (18.4 ft)

3.6 mm

80.0 m (262.5 ft)

32.0 m (105.0 ft)

16.0 m (52.5 ft)

8.0 m (26.3 ft)

6mm

Intelligence

IVS (Perimeter Protection)

Tripwire, intrusion (support the classification and accurate detection of vehicle and human)

Smart Search

Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos

Video

Video Compression

H.265; H.264; H.264H; H.264B; MJPEG (only supported by the sub stream)

Smart Codec

Smart H.265+
Smart H.264+

Video Frame Rate

Main stream (2688 × 1520@1–25/30 fps)

sub stream (704 × 576@1–25 fps/704 × 480@1–30 fps)

third stream (1280 × 720@1–25/30 fps)

Stream Capability

3 streams

Resolution

4M (2688 × 1520); 3M (2304 × 1296); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240)

Bit Rate Control

CBR/VBR

Video Bit Rate

H.264: 3 kbps–8192 kbps
H.265: 3 kbps–8192 kbps

Day/Night

Color/B/W

BLC

HLC

Yes

Yes

WDR

120 dB

Scene Self-adaptation (SSA)

Yes

White Balance

Auto; natural; street lamp; outdoor; manual; regional custom

Gain Control

Auto/Manual

Noise Reduction

3D NR

Motion Detection

OFF/ON (4 areas, rectangular)

Region of Interest (RoI)

Smart Illumination

Yes (4 areas)

Yes

Image Rotation

0°/90°/180°/270° (Support 90°/270° with 1920 × 1080 resolution and lower.)

Mirror

Yes

Privacy Masking

4 areas

Audio

Built-in MIC

Yes

Audio Compression

G.711a; G.711Mu; G726

Alarm

Alarm Event

No SD card; SD card full; SD card error; less service time of SD card (smart card supports); network disconnection; IP conflict; illegal access; voltage detection; security exception; motion detection; video tampering; scene changing; input abnormal; intensity change; tripwire; intrusion; SMD

Network

Network Port

RJ-45 (10/100 Base-T)

SDK and API

Yes

Network Protocol

IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; SNMP

Cyber Security

Video encryption; Firmware encryption; Configuration encryption; Digest; WSSE; Account lockout; Security logs; IP/MAC filtering; Generation and importing of X.509 certification; syslog; HTTPS; 802.1x; Trusted boot; Trusted execution; Trusted upgrade

Interoperability

ONVIF (Profile S/Profile G/Profile T); CGI; P2P; Milestone; Genetec

User/Host

20 (Total bandwidth: 64 M)

Storage

FTP; SFTP; Micro SD card (support max. 256 G); NAS

Browser

IE: IE8; IE9; IE11
Chrome
Firefox

Management Software

Smart PSS; DSS; DMSS

Mobile Client

IOS; Android

Certification

Certifications

CE-LVD: EN62368-1

CE-EMC: Electromagnetic Compatibility Directive

2014/30/EU

FCC: 47 CFR FCC Part 15, Subpart B

UL/CUL: UL60950-1 CAN/CSA C22.2 No.60950-1-07

Power

Power Supply

12 VDC/PoE

Power Consumption

< 7.7W

Environment

Operating Temperature

–40 °C to +60 °C (–40 °F to 140 °F) /Less than 95% RH

Storage Temperature

–40 °C to +60 °C (–40 °F to 140 °F)

Protection

IP67

Structure

Casing

Inner core: Metal

Cover: Metal

Decoration ring: Plastic

Product Dimensions

99.1 mm × Φ121.9 mm (3.9″ × Φ4.8″)

Net Weight

480 g (1.1 lb)

Gross Weight

660 g (1.5 lb)
