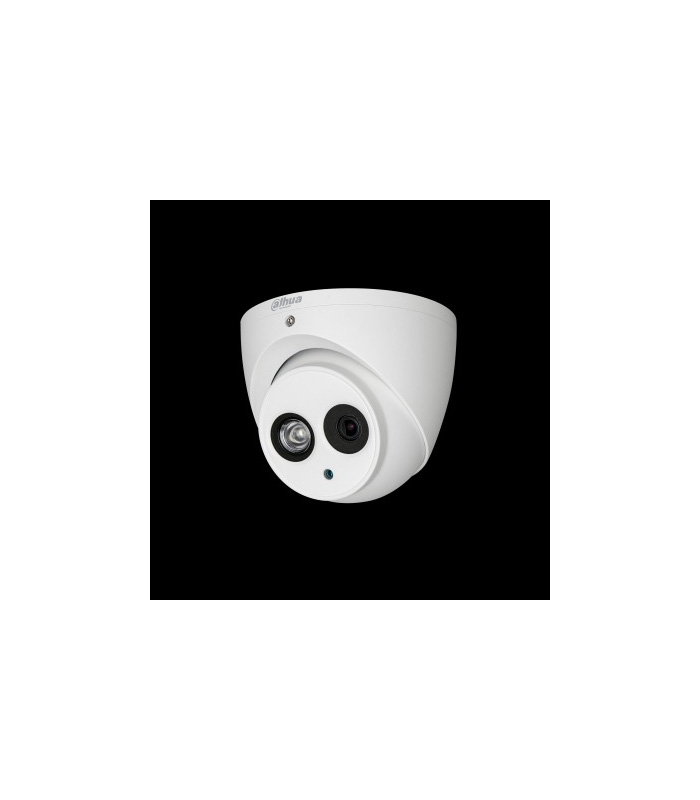

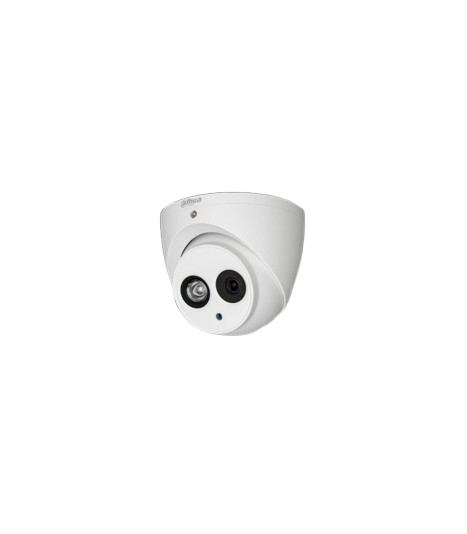

Dahua DH-HAC-HDW1200EMP 2MP Analog dome camera

· Max 30fps@1080P
· HD and SD output switchable
· 3.6mm fixed lens (2.8mm, 6mm optional)
· Max. IR length 50m, Smart IR
· IP67, DC12V

4 Signals over 1 Coaxial Cable

DH-HAC-HDW1200EMP-A-0280B-S4 HDCVI technology supports 4 signals to be transmitted over 1 coaxialcable simultaneously, i.e. video, audio*, data and power. Dual-way data transmission allows the HDCVI camera to interact with the XVR, such as sending control signal or triggering alarm. Moreover, HDCVI technology supports PoC for construction flexibility.
* Audio input is available for some models of HDCVI cameras.

Long Distance Transmission
DH-HAC-HDW1200EMP-A-0280B-S4 HDCVI technology guarantees real-time transmission at long distance without any loss. It supports up to 800m(1080P)/1200m(720P) transmission via coaxial cable, and up to 300m(1080P)/450m(720P) via UTP cable.*
*Actual results verified by real-scene testing in Dahua’s test laboratory.

Simplicity
DH-HAC-HDW1200EMP-A-0280B-S4 HDCVI technology inherits the born feature of simplicity from traditional analog surveillance system, making itself a best choice for investment protection. HDCVI system can seamlessly upgrade the traditional analog system without replacing existing coaxial cabling. The plug and play approach enables full HD video surveillance without the hassle of configuring a network.

Smart IR
DH-HAC-HDW1200EMP-A-0280B-S4 The camera is designed with array LED IR illumination for best lowlight performance. Smart IR is a technology to ensure brightness uniformity in B/W image under low illumination. Dahua’s unique Smart IR adjusts to the intensity of camera’s infrared LEDs to compensate for the distance of an object, and prevents IR LEDs from overexposing images as the object come closer to the camera.

Multi-formats
DH-HAC-HDW1200EMP-A-0280B-S4 The camera supports multiple video formats including HDCVI, CVBS and other two common HD analog formats in the market. The four formats can be switched over through OSD menu or by PFM820(UTC controller). This feature makes the camera to be compatible with most end users’ existing HD/SD DVRs.

Multi-language OSD
DH-HAC-HDW1200EMP-A-0280B-S4 OSD menu provides multiple image adjustments and function settings to meet the requirements of different monitoring scenes. The OSD menu includes configurations such as backlight mode, day/night, white balance, privacy mask and motion detect. The camera supports 11 languages for
OSD menu, namely, Chinese, English, French, German, Spanish, Portuguese, Italian, Japanese, Korean, Russian and Polish.

Protection
DH-HAC-HDW1200EMP-A-0280B-S4 The camera’s outstanding reliability is unsurpassed due to its rugged design
