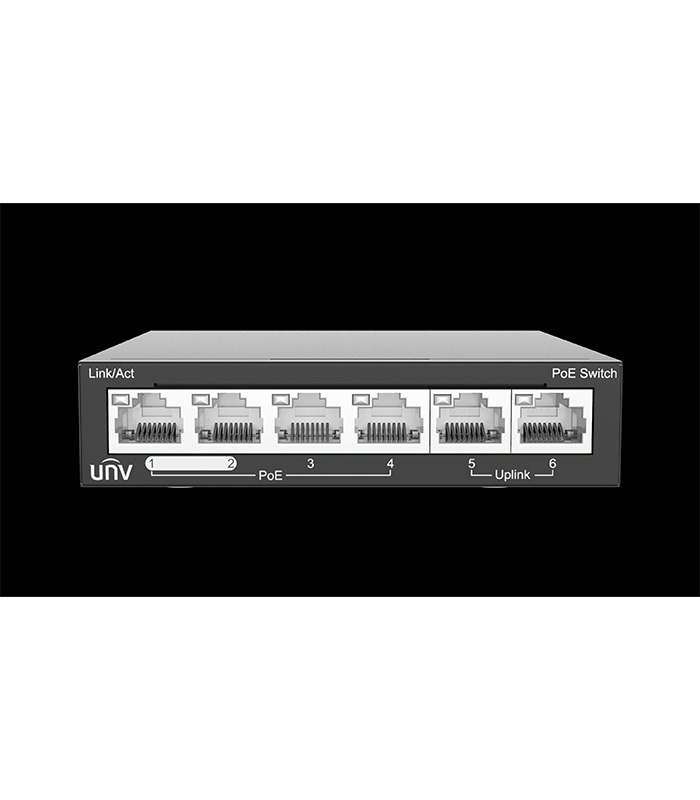

Uniview NSW2020-6T-POE-IN 6PORT Unmanaged Ethernet PoE Switch
₦41,055.00
Uniview NSW2020-6T-POE-IN 6PORT Unmanaged Ethernet PoE Switch
• Multiple working modes to address your business needs: Default(Normal mode), EXTEND(Surveillance mode)
• Support port traffic control
• Up to 250m transmission distance on Extend mode
• Support buffer optimization
• All metal housing, safe and reliable
| NSW2020-6T-POE-IN | ||||||||
| Hardware Specification | ||||||||
| Ports Type | 6×100Mbps network ports (RJ45), including 4 PoE ports | |||||||
| Standards | IEEE802.3, IEEE802.3u, IEEE802.3az, IEEE802.3x, IEEE802.3af, IEEE802.3at | |||||||
| Switching capacity | 1.2 Gbps | |||||||
| Packet Buffer | 448K bit | |||||||
| Forwarding performance | 0.90Mpps | |||||||
| MAC | 1K | |||||||
| Prior Ports | 1 to 2 | |||||||
| Power Supply | DC: 48/51V, powered by adapter (AC100-240V, 50/60Hz) | |||||||
| PoE | support POE | |||||||
| Max. PoE Power | Max capacity: 60 W, Max capacity for single port: 30 W | |||||||
| Storage Temperature | -40 ℃ to 70 ℃ | |||||||
| Operating humidity | 10%～90% (non-condensing) | |||||||
| Cooling Fans | 0 | |||||||
| Weight | 0.19KG | |||||||
| Dimensions (W×D×H) | 107*101*25mm | |||||||
| Storage humidity | 5%～90% (non-condensing) | |||||||
| Operating temperature | 0 ℃ to 40 ℃ (32 ℉ to 104 ℉) | |||||||
| Indicator | POWER Steady on: AC input is normal, POWER Off: No AC input, No PoE Indicator, PoE-MAX off: The POE power supply power of the whole machine is less than 80% of the specification, PoE-MAX Steady on : The POE power supply power of the whole machine is greater than 85% of the specification, LINK/ACT Off: No link, LINK/ACT Steady on: Linked, LINK/ACT Flashing: Transmitting data | |||||||
| Working Mode | Default (Normal mode) : All ports can communicate with each other, EXTEND (Surveillance mode): Transmission distance up to 250 meters | |||||||
| Brand |
Uniview |
|---|---|
| Solutions |
Datacom & Storage |
