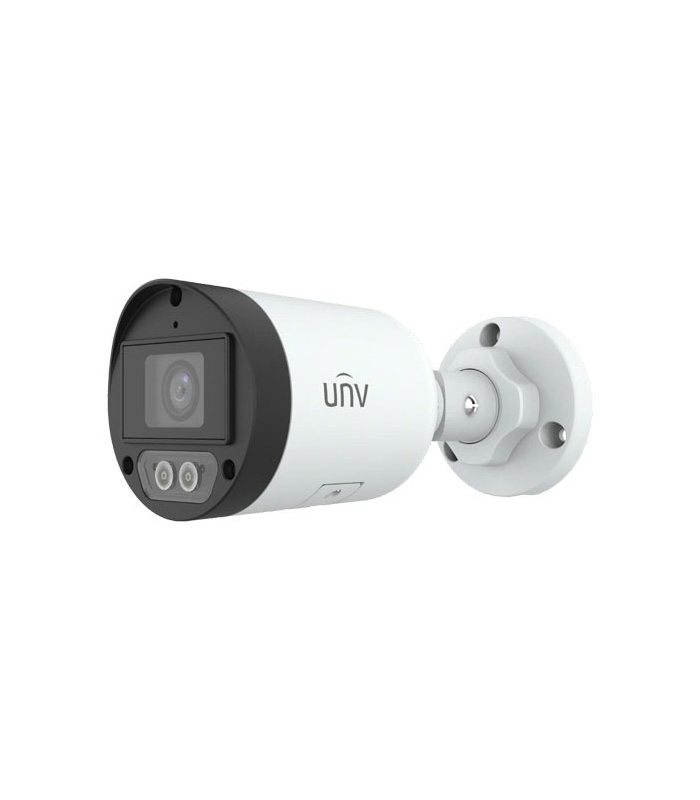

Uniview IPC2122LB-AF28K-WL 2MP Colour Hunter Bullet Network Camera WITH AUDIO
₦47,093.00
Uniview IPC2122LB-AF28K-WL 2MP Colour Hunter Bullet Network Camera WITH AUDIO
0
People watching this product now!
Description
• High quality image with 2MP, 1/2.9″CMOS sensor
• 2MP (1920*1080)@30/25fps; 720P (1280*720)@30/25fps
• Ultra 265, H.265, H.264, MJPEG
• Built-in Mic
• Smart IR, up to 30m (98ft) IR distance
• Supports 128 G Micro SD card
• IP67 protection
• 3-Axis
| IPC2122LB-AF28WK-G | IPC2122LB-AF40WK-G | ||||||||||
| Camera | |||||||||||
| Sensor | 1/2.9″, 2.0 megapixel, progressive scan, CMOS | ||||||||||
| Minimum Illumination | Colour: 0.01 lux (F2.0 AGC ON) 0 lux with IR on | ||||||||||
| Day/Night | IR-cut filter with auto switch (ICR) | ||||||||||
| Shutter | Auto/Manual, 1~1/100000 s | ||||||||||
| Adjustment Angle | Pan: 0° ~ 360° | Tilt: 0° ~ 90° | Rotate: 0° ~ 360° | ||||||||
| S/N | >52dB | ||||||||||
| WDR | DWDR | ||||||||||
| Lens | |||||||||||
| Lens Type | 2.8mm@F2.0 | 4.0mm@F2.0 | |||||||||
| Iris | Fixed | ||||||||||
| Field of View (H) | 101.1° | 83.7° | |||||||||
| Field of View (V) | 55.0° | 44.6° | |||||||||
| Field of View (D) | 111.0° | 89.1° | |||||||||
| DORI | |||||||||||
| DORI Distance | Lens | Detect(m) | Observe(m) | Recognize(m) | Identify(m) | ||||||
| 2.8mm | 45.0 | 18.0 | 9.0 | 4.5 | |||||||
| 4.0mm | 64.3 | 25.7 | 12.9 | 6.4 | |||||||
| Illuminator | |||||||||||
| IR Range | Up to 30m (98 ft) IR range | ||||||||||
| Wavelength | 850nm | ||||||||||
| IR On/Off Control | Auto/Manual | ||||||||||
| Video | |||||||||||
| Video Compression | Ultra 265, H.265, H.264, MJPEG | ||||||||||
| H.264 code profile | Baseline profile, Main profile, High profile | ||||||||||
| Frame Rate | Main Stream: 1080P (1920*1080), Max 30fps; 720P (1280*720), Max 30fps; Sub Stream: 720P (1280*720), Max 30fps; D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps; | ||||||||||
| Video Bit Rate | 128 Kbps~6 Mbps | ||||||||||
| U-code | Support | ||||||||||
| OSD | Up to 4 OSDs | ||||||||||
| Privacy Mask | Up to 4 areas | ||||||||||
| ROI | Up to 8 areas | ||||||||||
| Video stream | Dual streams | ||||||||||
| Image | |||||||||||
| White Balance | Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2 | ||||||||||
| Digital noise reduction | 2D/3D DNR | ||||||||||
| Smart IR | Support | ||||||||||
| Flip | Normal/Vertical/Horizontal/180° | ||||||||||
| Dewarping | N/A | ||||||||||
| HLC | Support | ||||||||||
| BLC | Support | ||||||||||
| Defog | Digital Defog | ||||||||||
| Events | |||||||||||
| Basic Detection | Human body detection, Motion detection, tampering alarm, audio detection | ||||||||||
| General Function | Watermark, IP address filtering, access policy, ARP protection, RTSP authentication, user authentication | ||||||||||
| Audio | |||||||||||
| Audio Compression | G.711U, G.711A | ||||||||||
| Audio Bitrate | 64 Kbps | ||||||||||
| Two-way Audio | N/A | ||||||||||
| Suppression | Support | ||||||||||
| Sampling Rate | 8KHZ | ||||||||||
| Storage | |||||||||||
| Edge Storage | Micro SD, up to 128GB | ||||||||||
| Network Storage | ANR,NAS(NFS) | ||||||||||
| Network | |||||||||||
| Protocols | IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SSL/TLS, SNMP | ||||||||||
| Compatible Integration | ONVIF (Profile S, Profile G, Profile T), API , SDK | ||||||||||
| User/Host | Up to 32 users. 2 user levels: administrator and common user | ||||||||||
| Security | Password protection, Strong password, HTTPS encryption, Export operation logs, Basic and digest authentication for RTSP, Digest authentication for HTTP, TLS 1.2, WSSE and digest authentication for ONVIF | ||||||||||
| Client | EZStation EZView EZLive | ||||||||||
| Web Browser | Plug-in required live view: IE 10 and above, Chrome 45 and above, Firefox 52 and above, Edge 79 and above | ||||||||||
| Plug-in free live view: Chrome 57.0 and above, Firefox 58.0 and above, Edge 16 and above | |||||||||||
| Wi-Fi | |||||||||||
| Wireless Standards | IEEE802.11b/g/n | ||||||||||
| Frequency Range | 2.4 GHz ~ 2.4835 GHz | ||||||||||
| Wireless Range | Up to 130 m (The performance varies based on actual environment) | ||||||||||
| Channel Bandwidth | 20 MHz Support | ||||||||||
| Modulation Mode | 802.11b: CCK, QPSK, BPSK 802.11g/n: OFDM/HT | ||||||||||
| Security | 64/128-bit WEP, WPA-PSK/WPA2-PSK | ||||||||||
| Transmit Power | 802.11b: 17±1.5dBm @11Mbps 802.11g: 14±1.5dBm @ 54Mbps 802.11n: 12.5±1.5dBm @150Mbps | ||||||||||
| Receive Sensitivity | 802.11b: -90dBm @11Mbps (Typical) 802.11g: -75dBm @54Mbps (Typical) 802.11n: -74dBm @150Mbps (Typical) | ||||||||||
| Transmission Rate | 802.11b: 11Mbps 802.11g: 54Mbps 802.11n: up to 150Mbps | ||||||||||
| Interface | |||||||||||
| Audio I/O | N/A | ||||||||||
| Alarm I/O | N/A | ||||||||||
| Serial Port | N/A | ||||||||||
| Built-in Mic | Support | ||||||||||
| Built-in Speaker | N/A | ||||||||||
| WIFI | Support | ||||||||||
| Network | 1 RJ45 10M/100M Base-TX Ethernet | ||||||||||
| Video Output | N/A | ||||||||||
| Certification | |||||||||||
| EMC | CE-EMC (EN 55032: 2015+A1:2020,EN 61000-3-3: 2013+A1: 2019,EN IEC 61000-3-2: 2019+A1: 2021,EN 55035: 2017+A11:2020) FCC (FCC CFR 47 part15 B, ANSI C63.4-2014) | ||||||||||
| RF | FCC ID (FCC CFR 47 part15 C) CE RED (EN 62311: 2008, EN 300 328 V2.2.2(2019-07), EN 301489-1 V2.2.3(2019-11), ETSI EN 301 489-17 V3.2.4(2020-09)) | ||||||||||
| Safety | CE LVD (EN 62368-1:2014+A11:2017) CB (IEC 62368-1:2014) UL (UL 62368-1, 2nd Ed., Issue Date: 2014-12-01) | ||||||||||
| Environment | CE-ROHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU); REACH (Regulation (EC) No 1907/2006) | ||||||||||
| Protection | IP67 (IEC 60529:1989+AMD1:1999+AMD2:2013) | ||||||||||
| General | |||||||||||
| Power | DC 12V±25% | ||||||||||
| Power consumption: Max 4.0 W | |||||||||||
| Power Interface | Ø 5.5mm coaxial power plug | ||||||||||
| Dimensions (L × W × H) | 172 × 76 ×72 mm (6.8” × 3” × 2.8”) | ||||||||||
| Weight | 0.25 kg (0.55 lb) | ||||||||||
| Material | Metal + Plastic | ||||||||||
| Working Environment | -30°C ~ +60°C (-22°F ~ 140°F), Humidity:≤95% RH(non-condensing) | ||||||||||
| Strorage Environment | -30°C ~ +60°C (-22°F ~ 140°F), Humidity:≤95% RH(non-condensing) | ||||||||||
| Surge Protection | 4KV | ||||||||||
| Reset Button | Support | ||||||||||
Additional information
| Brand |
Uniview |
|---|---|
| Solutions |
Video Surveillance |
