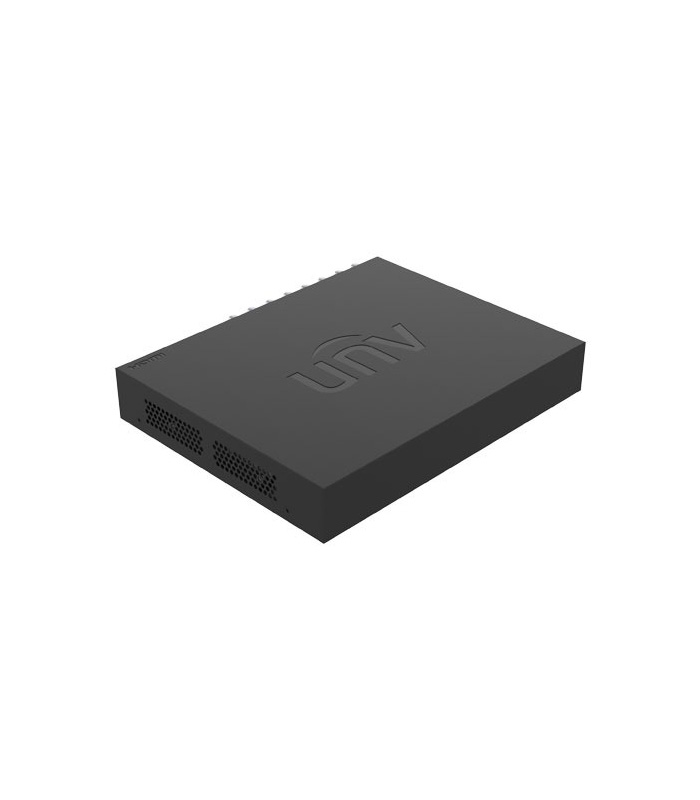

Uniview XVR301-16F 1 Hard Disk 16-Channel Digital Video Recorder
₦107,739.19
Uniview XVR301-16F 1 Hard Disk 16-Channel Digital Video Recorder
0
People watching this product now!
Description
- Support H.265/H.264 video formats
- Support audio over coaxial cable(only for TVI cameras)
- Support analog camera upgrade over coaxial cable
- Support TVI, AHD, CVI, CVBS, IP cameras with adaptive access
- 16-channel BNC input
- Support 1-ch HDMI output, 1-ch VGA output at up to 1920*1080
- HDMI and VGA simultaneous output
- Long transmission distance over coaxial cable
- Support mainstream cameras of ONVIF and RTSP protocols
| Model | XVR301-16F | |
| Video/Audio Input | ||
| Analog Video Input | 16-ch, BNC | |
| IP Video Input | 2-ch(only IP up to 18ch), each channel up to 8MP | |
| Supported Analog Camera Types | Support AHD input: 1080P@30fps 720P@30fps Support TVI input: 1080P@30fps 720P@30fps Support CVI input: 1080P@30fps 720P@30fps Support CVBS input | |
| Audio Compression | G.711U | |
| Video/Audio Output | ||
| VGA Output | 1920x1080p/60Hz, 1920x1080p/50Hz, 1600×1200/60Hz, 1280×1024/60Hz, 1280×720/60Hz, 1024×768/60Hz | |
| HDMI Output | 1920x1080p/60Hz, 1920x1080p/50Hz, 1600×1200/60Hz, 1280×1024/60Hz, 1280×720/60Hz, 1024×768/60Hz | |
| Synchronous Playback | HD:16-ch SD:16-ch | |
| Live view display | HDMI/VGA: 1/4/6/8/9/16/25 | |
| Snapshot | ||
| FTP/Schedule/Event Snapshot | Schedule snapshot is not supported 16-ch snapshot, up to 704*576 resolution | |
| Network | ||
| Incoming Bandwidth | 24Mbps (Up to 56Mbps after all analog channel conversion) | |
| Outgoing Bandwidth | 64Mbps | |
| Remote Users | 128 | |
| Protocols | TCP/IP, P2P, UPnP, NTP, DHCP, HTTP, HTTPS, DNS, DDNS, SMTP | |
| Browser | IE(IE10/11) for Windows Firefox (version 52.0 and above) for Windows Chrome(version 45 and above) for Windows Edge(version 79 and above) for Windows | |
| Encoding | ||
| Recording Resolution | 1080P Lite/720P/D1 | |
| Recording Frame Rate | Main stream | Sub stream |
| 1080P Lite@12fps | D1@12fps | |
| 720P@15fps | D1@15fps | |
| Audio Sample Rate | 8KHz,16 bit per channel | |
| Audio Bit Rate | 64Kbps per channel | |
| Decoding | ||
| Capability | Analog:16x 1080P Lite@12, 16x 720P@15 IP: 1 x 8MP@30, 2 x 4MP@30, 4 x 1080P@30, 8 x 720P@30,16 x D1@30 | |
| Hard Disk | ||
| SATA | 1 SATA interface | |
| Capacity | Up to 6TB for each HDD | |
| Smart Alarm | ||
| VCA Detection | Ultra Motion Detection(UMD) for analog:8-ch | |
| VCA Search | Behavior Search | |
| General Alarm | ||
| General Alarm | Motion detection | |
| Alert Alarm | IP Conflict, Network Disconnected, Disk offline, Disk Abnormal, Illegal Access, Hard Disk Space Low, Hard Disk Full, Recording/Snapshot Abnormal | |
| External Interface | ||
| Network Interface | 1 RJ45 10M/100M self-adaptive Ethernet Interface | |
| USB Interface | Rear panel: 2 x USB2.0 | |
| General | ||
| Power Supply | 12V DC Power Consumption: ≤ 10 W( without HDD ) | |
| Working Environment | -10°C ~ + 55°C ( +14°F ~ +131°F ), Humidity ≤ 90% RH(non-condensing) | |
| Dimensions(W×D×H) | 253mm × 212mm × 42mm (10.0″ × 8.4″ × 1.7″) | |
| Weight ( without HDD ) | ≤0.85 Kg ( 1.87lb ) | |
| Certification | ||
| Certification | UL/CE/FCC /RoHS /WEEE | |
