Huawei eSFP-GE-SX-MM850 Multi-mode Module
₦41,468.00

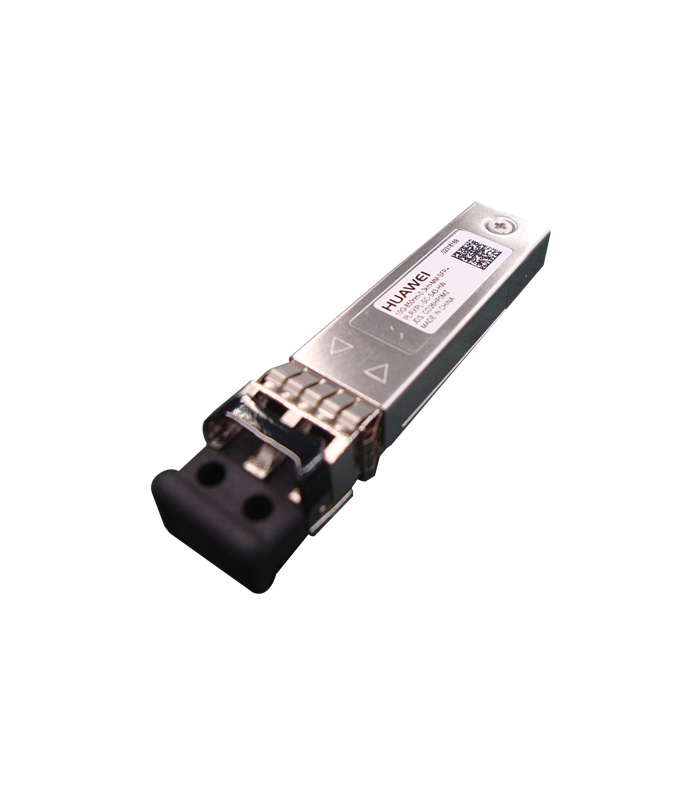

Huawei SFP-10G-USR Multi-mode Module
₦347,300.00
SFP-10G-USR (02310MNW) ; Form factor, SFP+ ; Application standard, 10GBASE-USR (non-standard) ; Connector type, LC
0
People watching this product now!
Description
SFP-10G-USR specifications
| Item | Value |
|---|---|
| Basic Information | |
| Module name | SFP-10G-USR |
| Part Number | 02310MNW |
| Model | SFP-10G-USR |
| Form factor | SFP+ |
| Application standard | 10GBASE-USR (non-standard) |
| Connector type | LC |
| Optical fiber type | MMF |
| Working case temperature [°C(°F)] | 0°C to 70°C (32°F to 158°F) |
| Digital diagnostic monitoring (DDM) | Supported |
| Transmission rate [bit/s] | 10 Gbit/s |
| Target transmission distance [km] | Multimode fiber (OM3): 0.1 km |
| Transmitter Optical Characteristics | |
| Center wavelength [nm] | 850 nm |
| Maximum Tx optical power [dBm] | -1.0 dBm |
| Minimum Tx optical power [dBm] | -7.3 dBm |
| Minimum extinction ratio [dB] | 3.0 dB |
| Receiver Optical Characteristics | |
| Rx sensitivity [dBm] | -10.7 dBm |
| Overload power [dBm] | 0.5 dBm |
