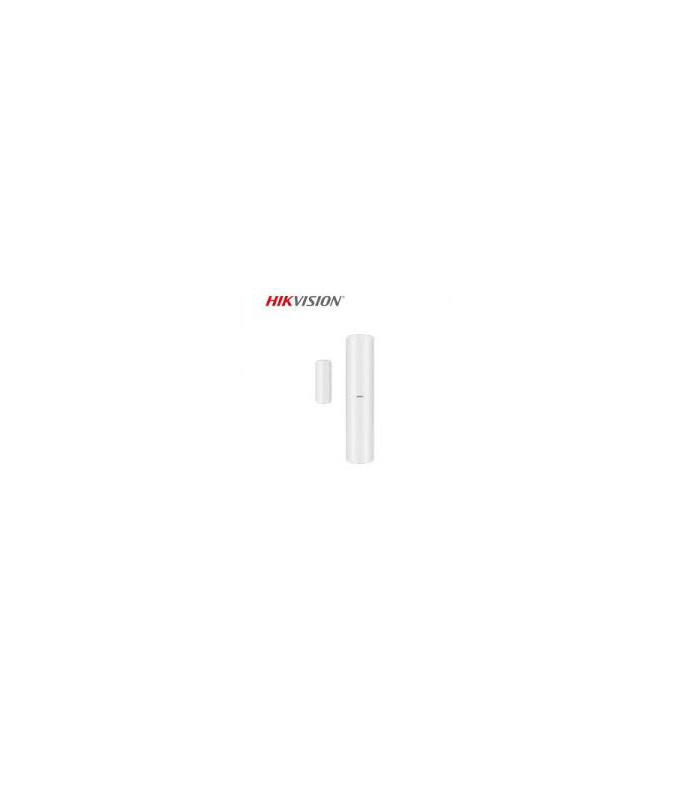

Hikvision DS-PDMC-EG2-WB Wireless Magnet Detector

• Slim design for an unobtrusive (unnoticeable) installation
• Fully remote configurable through App
• Multiple enrollment methods and easy installation design
• Frequency hopping against jamming for reliable transmission

Detection Performance

• Detection MethodOpening Contact
• Detection Gap43mm Max

Feature

• Digital ProcessingSupport
• Tamper ProtectionFront;Rear
• Environment Temperature IndicatorSupport
• Signal Strength IndicatorSupport

Interface

• Alarm InputNormally Closed;Normally Open;Impulse Count
• Power SwitchPower Up Enrolling
• LED IndicatorBlue (Alarm)

Transmission

• Transmission TechnologyTri-X Wireless
• Transmission MethodTwo-Way RF Wireless
• Transmission Frequency433MHz
• Transmission SecurityAES-128 Encryption
• Transmission Range(Free Space)1.2Km
• Frequency HoppingSupport
• Enrolling MethodPower up;Remote ID;QR Code

Electrical Characteristics

• Standard Battery Life
• 5 years in work status (being triggered 20 times per day)

Power SupplyBattery Powered

• Battery TypeCR123A x 1
• Typical Voltage3V

General

• Operation Temperature-10 °C to 55 °C (14 °F to 131 °F)
• Storage Temperature-20 °C to 60 °C (-4 °F to 140 °F)
• Operation Humidity10% to 90%
• Dimension(WxHxD)
  22.5mm × 103mm × 23.2mm

13mm × 34.4mm × 11.4mm

59g

• Application ScenarioIndoor
