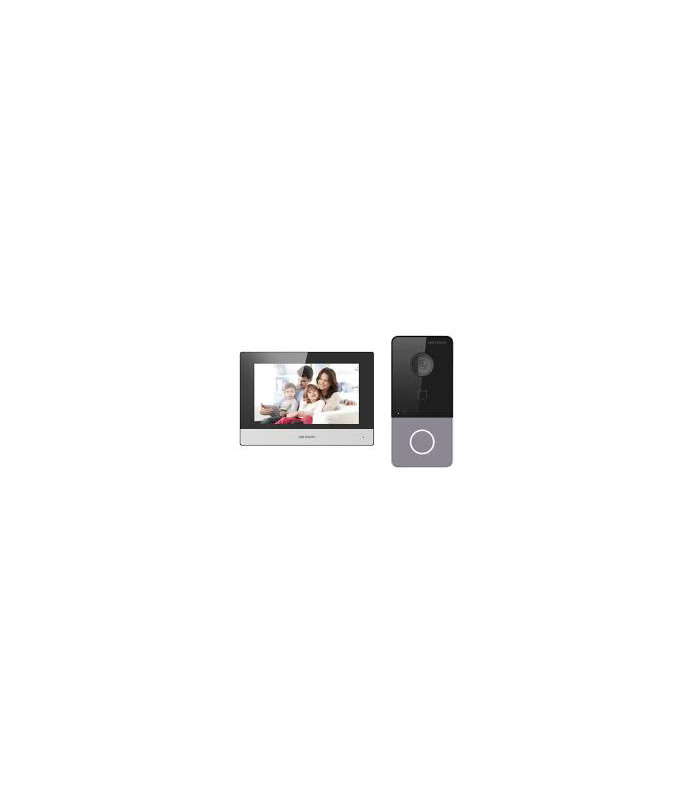

Hikvision DS-KIS603-P IP Video Intercom Kit
Hikvision DS-KIS603-P IP Video Intercom Kit
IP video intercom kit for villa or house, only one call button;
- DS-KV6113-WPE1 x1;
- DS-KH6320-WTE1 x1;
- PSU x2;
Door Station/System Parameters
- Operation SystemEmbedded Linux operation system
- Flash32 MB
- RAM128 MB
Door Station/Video Parameters
- Camera2MP HD camera
- Night VisionLow illumination IR supplement mode:3 m
- Backlight CompensationSupport
- Digital Noise ReductionSupport
- WDRTrue WDR
- Field Of ViewHorizontal: 129° Vertical: 75°
- Video Compression StandardH.264
- StreamMain stream: 1080p@30fps, 720p@25fps Sub stream: D1@25fps
- Motion DetectionSupport
- Flash-Avoid Frequency50 Hz, 60 Hz
Door Station/Audio Parameters
- Audio InputBuilt-in omnidirectional microphone
- Audio OutputBuilt-in loudspeaker
- Audio QualityNoise suppression and echo cancellation
- Audio Compression StandardG.711 U
- Audio Compression Rate64 Kbps
- Audio IntercomTwo-way audio communication
Door Station/Network Parameters
- Network ProtocolTCP/IP, RSTP
- Wired Network10/100 Mbps Ethernet
Door Station/Device Interfaces
- RS-4851
- Alarm Input4
- Debugging Port1
- Grounding1
- TAMPER Switch1
Door Station/General
- Power Consumption＜ 10 W
- Working Temperaturee -40° C to 53° C(-40° F to 127.4° F)
- Working Humidity10% to 95%
- Dimension138 mm × 65 mm × 27 mm
- InstallationSurface mounting
- Protection LevelIP65
- Indicator2
- Power Supply
IEEE802.3af, standard PoE
12 VDC
Indoor Station/System Parameters
- Operation SystemEmbedded Linux operation system
- Memory128 MB
- Flash32 MB
Indoor Station/Display Parameters
- Display Screen7-inch colorful TFT screen
- Display Resolution1024 × 600
- Operation MethodCapacitive touch screen
Indoor Station/Audio Parameters
- Audio InputBuilt-in omnidirectional microphone
- Audio OutputBuilt-in loudspeaker
- Audio QualityNoise suppression and echo cancellation
- Audio Compression StandardG.711 U
- Audio Compression Rate64 Kbps
Indoor Station/Network Parameters
- Wired Network10/100 Mbps self-adaptive
- Wireless NetworkWi-Fi 802.11 b/g/n
- ProtocolTCP/IP, SIP, RTSP
- RS-4851 RJ-45 10/100 Mbps self-adaptive
Indoor Station/Device Interfaces
- RS-4851
- Alarm Input8-ch alarm inputs
- Relay Output2
- TF CardMax to 32 G, SD 2.0 or lower version
Indoor Station/General
- Power Consumption≤ 6 W
- Working Temperature‘-10 °C to 55 °C (14 °F to 131 °F)
- Working Humidity10% to 90%
- Dimension (L X W X H)
200 mm × 140 mm × 15.1 mm (7.9″ ×
5.5 × 0.6\”)”
| Brand |
Hikvision |
|---|---|
| Solutions |
Access Control |
