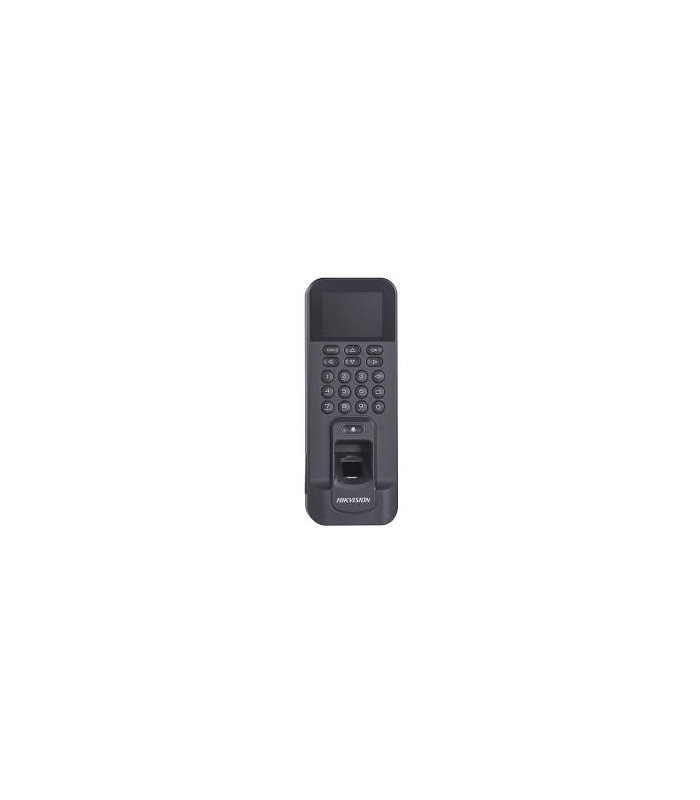

Hikvision DS-K1T804AMF Fingerprint Terminal

• Integrated management of access control and the time and attendance functions
• 3,000 fingerprints, 3,000 cards and 100,000 events storage
• Built-in card reader for Mifare1 card
• Communication via TCP/TP and Wi-Fi
• RS-485, wiegand interface
• Alarm input and output interface
• ISUP5.0, ISAPI

System Parameters
Fingerprint Recognition Duration:
< 1 s

Operation System: Linux

Storage: 3,000 cards, 100,000
events, 150,000 attendance records

FRR (False Rejection Rate):
â0.01%

Card Reading Distance: 0 to 5cm

FAR (False Accept Rate): â0.001%

Fingerprint Comparing Mode: 1:1
and 1:N, N=3000

Card Reading Mode: Supports
Mifare Card, Including Cards with Special Shapes; Supports Reading Card
in Metal Environment

Card Reading Response Duration:
< 1 s

Fingerprint Recognizer: Optical
Fingerprint Recognizer Module

Fingerprint Capacity: 3,000

Device Interfaces

Wiegand Interface: Output:
Wiegand 26/34; Input: Wiegand 26/34

Communication Interface:
TCP/IP, RS-485 (For Secure Door Control Unit), Wiegand Output (W26/W34)
and Input (Wiegand 26/34)

Output Interface: Relay (Lock
Output) à 1, and Alarm Output à 1

External Card Reader: Standard
Wiegand26/34

Transmission Rate: TCP/IP,
WIFI: 10/100Mbps Self-adaptive,

RS-485: 19200 bps-N-8-1

Input Interface: Exit Button Ã
1, Door Sensor à 1 and Alarm Input à 1

Wi-Fi: Support

USB Interface: USB2.0, Type A

General

LCD Screen: 2.4-inch (320Ã240
LCD-TFT Display Screen)

Key Board: Keyboard (Back Light)

Power Supply: 12 VDC/2 A

Audio: 1 Buzzer and 1
Loudspeaker

Appearance Color: Black
(Included), Gold (Optional), Silver (Optional), White (Optional)

LED Indicator: Power/Status
(Red/Green)

Reset Key: Ã 1

Installation: Surface Mounting,
Metal Door Mounting, Installation with Gang Box

Temper-Proof: Support

Water-Proof: IP42

Working Humidity: 10% to 90%
(Non-Condensing)

Working Temperature : -10Â C to
55Â C (14Â F to 131Â F)

Dimensions (LÃWÃH): 205 mm Ã
76.5 mm à 37 mm (8.07″ à 3.01″ à 1.46″)
