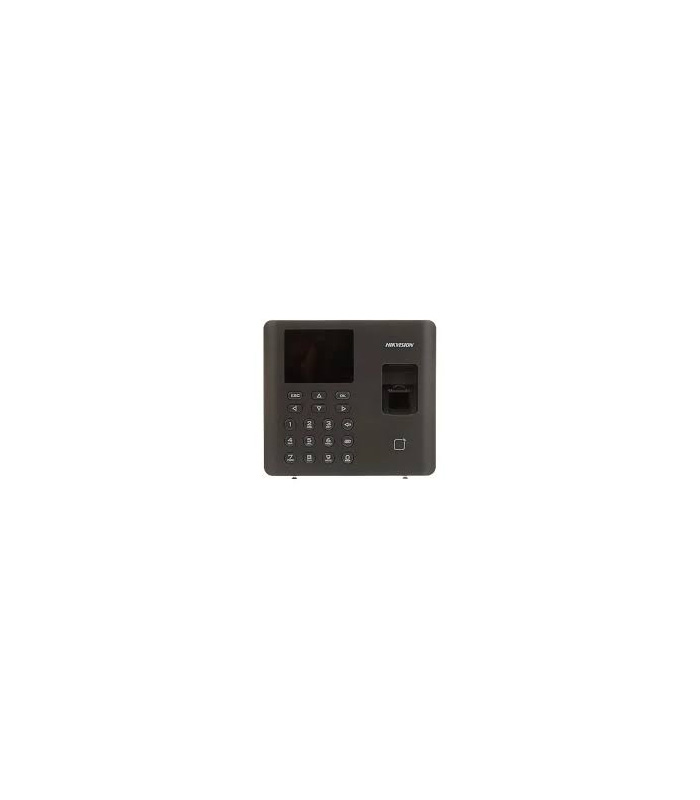

Hikvision DS-K1A802AMF Pro Series Fingerprint Time Attendance Terminal

• Fingerprint Time Attandence Terminal, Built-in Mifare card reading module
• 3,000 fingerprints, 3,000 cards and 100,000 events storage
• Communication via TCP/TP and Wi-Fi
• Power supply：5 VDC/1 A
• ISUP5.0, ISAPI

System Parameters
Display

• Screen Size2.4-inch
• TypeLCD-TFT display screen

Audio

• Audio Output1 loudspeaker, 1 buzzer

Network

• Wired NetworkTCP/IP, 10/100Mbps, self-adaptive
• Wi-FiSupport

Interface

• Network Interface1
• USB1

Capacity

• Card Capacity3000
• Fingerprint Capacity3000
• Event Capacity100,000

Authentication

• Card TypeMifare 1 card
• Card Reading Distance0 to 5 cm
• Card Reading Duration＜ 1 s
• Fingerprint ModuleOptical fingerprint module
• Fingerprint Comparing Mode1:1 and 1:N
• Fingerprint Recognition Duration＜ 1 s

General

• IndicatorPower/status (red/green)
• Power Supply5 VDC/1 A
• Working Temperature-10 °C to +55 °C (14 °F to +131 °F)
• Working Humidity10% to 90% (no condensing)
• ColorBlack
• Dimensions140 mm × 155 mm × 30 mm (5.51″ × 6.01″ × 1.18″)
• Application EnvironmentIndoor
• InstallationSurface mounting, desk stand
