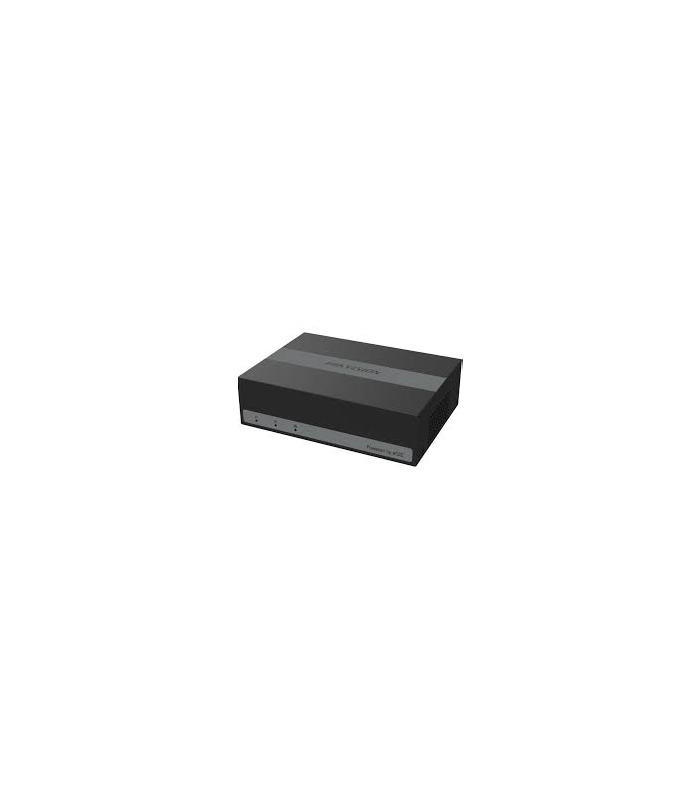

Hikvision DS-E08HGHI-B 8-ch eSSD DVR

• Powered by eSSD technology
• Deep learning based human and vehicle targets classification of Motion Detection 2.0
• Scene-adaptive bitrate control video compression
• Up to 1080p Lite@15 fps encoding capability
• Low power consumption
• Audio via coaxial cable

• Motion Detection 2.0
• Human/Vehicle Analysis

Deep learning-based motion detection 2.0 is enabled by default for all analog channels, it can classify human and vehicle, and extremely reduce false alarms caused by objects like leaves and lights;

Quick search by object or event type is supported;

• Recording
• Video CompressionH.265 Pro/H.265
• Encoding Resolution1080p Lite/720p/720p Lite/WD1/4CIF/CIF/QVGA
• Frame Rate

Main stream:

1080p Lite/720p/720p Lite/WD1/4CIF@15 fps

Note:

1080p Lite/720p is 15 fps by default

Sub-stream:

CIF/QVGA@15 fps

• Video BitrateAccording to the actual scene, scene-adaptive bitrate control technology would automatically allocates appropriate bitrate to ensure the stability of recording period.
• Stream Type
  Video, Video & Audio

Note: In order to protect privacy, the device will only record video (without audio) by default. If you want to record audio, you shall manually enable audio recording. For operation details, refer to the user manual.

• Audio CompressionG.711u
• Audio Bitrate64 Kbps
• Video And Audio
• IP Video Input
  2-ch

Up to 5 MP resolution

Support H.265+/H.265 IP cameras

• Analog Video Input
  8-ch

BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection

• HDTVI Input1080p25, 1080p30, 720p25, 720p30
• AHD Input1080p25, 1080p30, 720p25, 720p30
• HDCVI Input1080p25, 1080p30, 720p25, 720p30
• CVBS InputSupport
• HDMI Output1-ch, 1920 × 1080/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz
• VGA Output1-ch, 1920 × 1080/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz
• Video Output ModeHDMI/VGA simultaneous output
• Audio Input8-ch via coaxial cable
• Audio Output1-ch via HDMI
• Synchronous Playback8-ch
• Network
• Total Bandwidth
  72 Mbps

Incoming bandwidth: 8 Mbps

• Remote Connection32
• Network ProtocolTCP/IP, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, NFS, UPnP™, HTTPS
• Network Interface1, RJ45 10/100 Mbps self-adaptive Ethernet interface
• Auxiliary Interface
• Capacity
  Built-in 512 GB eSSD (480 GB available)

Note:

The device can store about 2 weeks videos for 8-ch analog cameras (default parameters), this estimation is for reference only.

• USB InterfaceRear panel: 2 × USB 2.0
• Alarm In/OutN/A
• General
• Power Supply12 VDC, 1 A
• Consumption≤ 6.2 W (with eSSD)
• Working Temperature-10 °C to 45 °C (14 °F to 113 °F)
• Working Humidity10% to 90%
• Dimension (W × D × H)151 × 121 × 46 mm (5.94 × 4.76 × 1.81 inch)
• Weight≤ 0.5 kg (with eSSD, 1.1 lb.)
