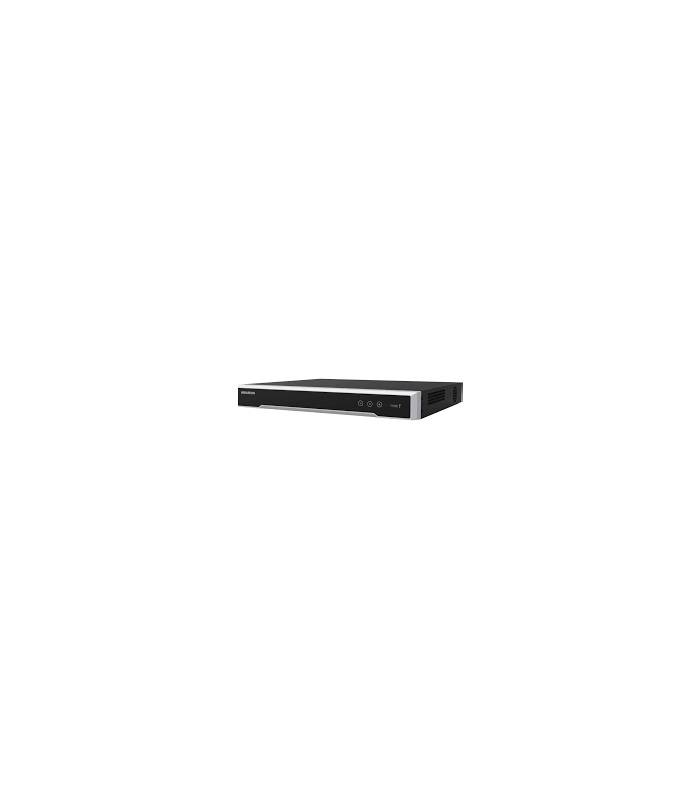

Hikvision DS-7616NI-Q2/16P 16ch 16 PoE 4K NVR

• H.265+/H.265/H.264/H.264+ video formats
• Connectable to the third-party network cameras
• Up to 16 IP cameras can be connected
• Recording at up to 8 MP resolution
• Supports live view, storage, and playback of the connected camera at up to 8 MP resolution
• HDMI and VGA independent outputs
• HDMI Video output at up to 4K (3840 Ã 2160) resolution
• 2 SATA interfaces connectable for recording and backup
• H.265+ compression effectively reduces the storage space and costs by up to 75%
• 1 self-adaptive 10/100/1000 Mbps network interface
• 8/16 independent PoE network interfaces are provided
• Centralized management of IP cameras, including configuration, information import/export, real-time information display, two way audio, upgrade, etc.
• Connectable to smart IP cameras from Hikvision and the recording, playing back, and backing up of VCA alarms can be realized
• VCA detection alarm is supported
• Instant playback for assigned channel during multi-channel display mode
• Smart search for the selected area in the video; and smart
• playback to improve the playback efficiency
• Hik-Connect for easy network management

Specifications
Video/Audio Input
Two-way audio input: 1-ch, RCA
(2.0 Vp-p, 1kÃ)

IP video input: 16-ch

IP Video input: Up to 8 MP
resolution

Network
Incoming bandwidth: 160Mbps

Outgoing bandwidth: 160Mbps

Video/Audio Output
HDMI Output: 1-ch,
resolution:4K (3840 Ã 2160)/30Hz,1920 Ã 1080/60Hz, 1600 Ã 1200/60Hz,
1280 Ã1024/60Hz, 1280 Ã 720/60Hz, 1024 Ã 768/60Hz.

Recording Resolution:
8MP/6MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF

Audio Output: 1-ch, RCA
(Linear, 1kÃ)

Synchronous Playback: 16-ch

VGA Output: 1-ch, resolution:
1920*1080P/60Hz, 1280*1024/60Hz, 1280*720/60Hz, 1024*768/60Hz

Decoding
Decoding format:
H.265/H.265+/H.264/H.264+/MPEG4

Capability: 1-ch @ 8 MP / 4-ch
@ 1080p

Live view / Playback: 8 MP/6
MP/5 MP/4 MP/3 MP/1080p/UXGA /720p/VGA/4CIF/DCIF/ 2CIF/CIF/QCIF

Hard Disk
SATA: 2 SATA interfaces

Capacity: Up to 6TB capacity
for each disk

Capacity: Up to 6TB capacity
for each HDD

External Interface
Network Interface: 1RJ-45
10/100/1000Mbps self-adaptive Ethernet interface

USB Interface: 2, USB2.0

POE
Supported Standard: AF and AT

Interface: 16 independent 10
/100 Mbps PoE Ethernet interfaces

Max. Power: 160W

General
Power Supply: 100 to 240 VAC

Power: Ã 180W

Consumption(without hard disk and POE):
à 15W

Working Temperature: -10 oC ~
+55 oC (+14 oF~ + 131 oF)

Working Humidity: 10 % ~ 90 %

Chassis: 1U chassis

Dimensions: 385 Ã 315 Ã 52 mm
(15.2″Ã 12.4″ Ã 2.0″)

Weight(without HDD): Ã 2.6 kg
(5.7 lb)
