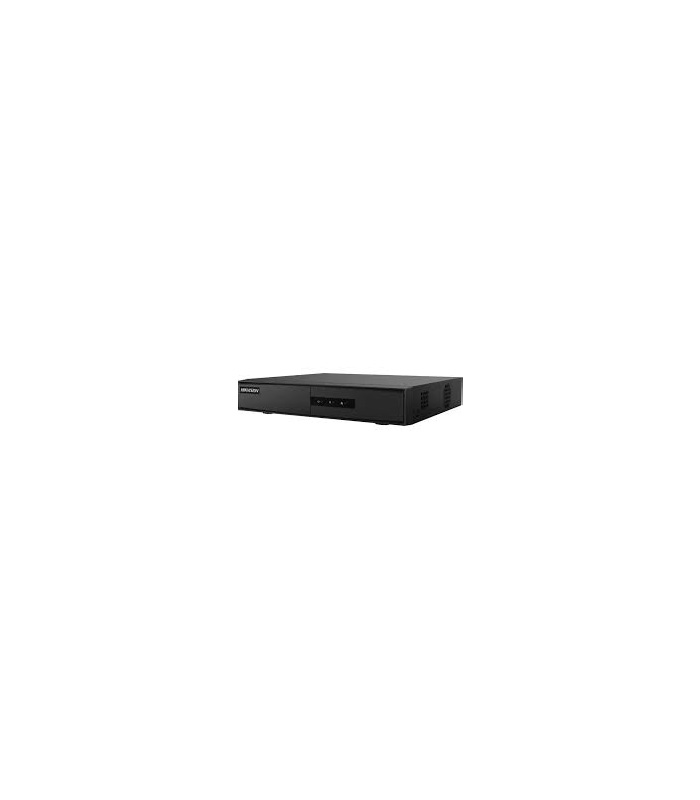

Hikvision DS-7104NI-Q1/4P/M 4-ch 4port PoE NVR
Hikvision DS-7104NI-Q1/4P/M 4-ch 4port PoE NVR
- Recording resolution up to 4 MP,
- Parallel HDMI/VGA (1080p/60 Hz) outputs,
- Maximum input/output bandwidth – 40/60 Mbps,
- Support for up to 4 Hikvision or other manufacturers’ IP cameras via Onvif,
- Built in 4-port PoE switch,
- Support for 1 SATA drive up to 6 TB,
- Support for VCA functions: virtual line and intrusion area,
- Video compression supported H.265 (+)/H.264(+),
- ANR function support,
- 2 x USB 2.0,
- Ethernet ports: 1 x Rj 10100/1000 Mbps,
- Application for a PC iVMS-4200 and smartphone Hik-Connect (Andriod, iOS),
- Access via P2P.
H.265 (+) compression
Compression is a very important parameter proving the device advancement. The better the compression, the lower the bandwidth requirement with the same subjective quality. H.265 (HEVC – High Efficiency Video Coding) is currently the most efficient compression method. Compared to its predecessor (H.264), it reduces the data stream and the demand for disk capacity by half. Therefore, hard drives with a halved capacity can be used, or recordings can be stored for twice as long. Its improved version H.265+ has been optimized for use in CCTV monitoring systems. They allow for further reduction of data streams.
iVMS-4200 client software
iVMS-4200 is client software dedicated to the management and supervision of Hikvision security systems, such as DVRs (IP, TurboHD), video intercoms, access control, set-top boxes, etc. The software allows you to easily and conveniently monitor all systems by offering viewing from IP cameras, remote playback of recordings, remote configuration, handling of alarm events, two-way audio transmission, e-map support, recording to a HDD and many more.
Access via P2P cloud – Hik-Connect application
A mobile application Hik-Connect is dedicated to operate Hikvision devices using cell phones with the operating system Android or iOS. It can be used to remotely view live video from DVR, NVR, network cameras, video intercoms using Wi-Fi, 2G or 3G networks as well as to view recorded video. Video intercoms can be operated with the application which additionally allows for remote opening of electric doors, receiving notifications and transferring calls from the entrance panel to the phone in the absence of the resident. The application supports connectivity via IP and the P2P cloud. Hik-Connect is also the name of a cloud-based service that allows access to devices in the absence of an external IP address.
Model | DS-7104NI-Q1/4P/M(D) | ||
Type of goods | IP recorder | ||
type | Standard | ||
Mark | Hikvision | ||
Q Series, | |||
% | 10 to 90 | ||
Number of channels | 4 | ||
Operating band | Input | MBps | 40 |
Operating band | Output | MBps | 60 |
Output modes | HDMI/VGA | ||
Max. output resolution | HDMI 1 | px | 1920 × 1080 |
VGA 1 | px | 1920 × 1080 | |
Coding/decoding | compression standards | H.265+, H.265, H.264+, H.264 | |
Coding/decoding | max. recording resolution | MP | 4 |
synchronous playback | 4 channels | ||
max. decoding resolution | 2 channels 4 MP, 4 channels 1080p | ||
HDD | Number of SATA interfaces | 1 | |
HDD | max. capacity of each HDD | TB | 6 |
USB | 2 | ||
Two-way audio | No | ||
Ethernet | 1 × RJ-45 10/100 | ||
Built in PoE switch | Again | ||
PoE | number of ports | 4 × RJ-45 10/100 Base-T | |
PoE | standard | IEEE 802.3af/at | |
Power output | IN | max. 36 | |
Applications | iVMS-4200, Hik-Connect | ||
Archiving | USB, Remote | ||
Network protocols | DDNS, DHCP, DNS, NTP, SADP, SMTP, TCP/IP, UPnP | ||
Smart functions | |||
Support for motion detection and VCA functions | motion detection, virtual line, intrusion detection | ||
Additional functions | ANR | ||
Others | |||
Power supply | DC | In | 48 |
DC | IN | max. 48 | |
Current drawn (no HDD and PoE) | IN | 10 | |
Operating temperature | °C | -10…+55 | |
Dimensions (W × D × H) | mm | 265 × 225 × 48 | |
Weight | kg | 1,7 |
Download
Name | Language | Size | Datum | |
---|---|---|---|---|
Datasheet v4.30.300 | IN | 972,63 KB | 2022-05-04 | |
Firmware | PL | – | 2024-05-16 | |
Software and manuals | PL | – | 2022-05-04 | |
GPSR | CZ | – | 2024-12-13 |
