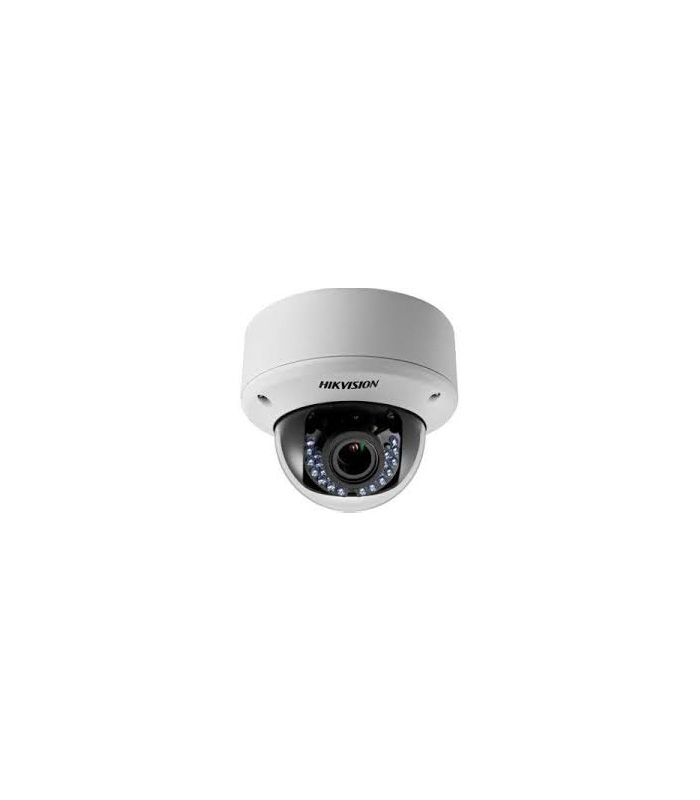

Hikvision DS-2CD2722FWD-IS 2MP WDR Vari-focal Dome Network Camera

Camera

• Image Sensor: 1/2.8″ Progressive Scan CMOS
• Min. Illumination: 0.01Lux @(F1.2,AGC ON), 0.014 Lux @(F1.4,AGC ON), 0 Lux with IR
• Shutter time: 1/3 s ~ 1/10,000 s
• Slow shutter: Support
• Lens: 2.8 – 12 mm @ F1.4
• Lens Mount: φ14
• Adjustment Range: Pan:0° – 355°, Tilt: 0° – 75°, Rotation: 0° – 355°
• Day& Night: IR cut filter with auto switch
• Wide Dynamic Range: 120 dB
• Digital noise reduction: 3D DNR

Compression Standard

• Video Compression: H.264/MJPEG/H.264+
• H.264 code profile: Main Profile
• Video bit rate: 32Kbps~16Mbps
• Audio Compression: -S: G.711/G.722.1/G.726/MP2L2


• Max. Image Resolution: 1920 x 1080
• Frame Rate: 50Hz: 25fps(1920 × 1080, 1280 × 960, 1280 × 720)
• 60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720)
• Image Enhancement: BLC/3D DNR/ROI
• Image Settings: Rotate Mode, Saturation, Brightness, Contrast, Sharpness adjustable by client software or web browser
• Day/Night Switch: Auto/Schedule/Triggered by Alarm In

Network

• Network Storage: Micro SD/SDHC/SDXC card with ANR (up to 128G), NAS (Support NFS, SMB/CIFS)
• Alarm Trigger: Line Crossing, Intrusion Detection, Motion detection, Dynamic analysis, Tampering alarm, Network disconnect , IP address conflict, Storage exception
• Protocols: TCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP,
• IGMP, 802.1X, QoS, IPv6, Bonjour
• Security: One-key reset, flash-prevention, dual streams, heartbeat, mirror, password protection, privacy mask, Watermark, IP address filtering, Anonymous access
• System Compatibility: ONVIF (Profile S, Profile G), PSIA, CGI, ISAPI

Interface

• Communication Interface: 1 RJ45 10M / 100M Ethernet interface

General

• Operating Conditions: -30 °C ~ 60 °C (-22 °F ~ 140 °F)
• Humidity 95% or less (non-condensing)
• Power Supply: 12 VDC ± 10%, PoE (802.3af)
• Power Consumption: Max. 5.5 W
• Impact Protection: IEC60068-2-75Eh, 50J; EN50102, IK10
• Weather Proof: IP66
• IR Range: Up to 30m
• Dimensions: Φ 140 × 99.9 mm (Φ 5.51” × 3.94”)
• Weight: Φ 140 × 99.9 mm (Φ 5.51” × 3.94”)
