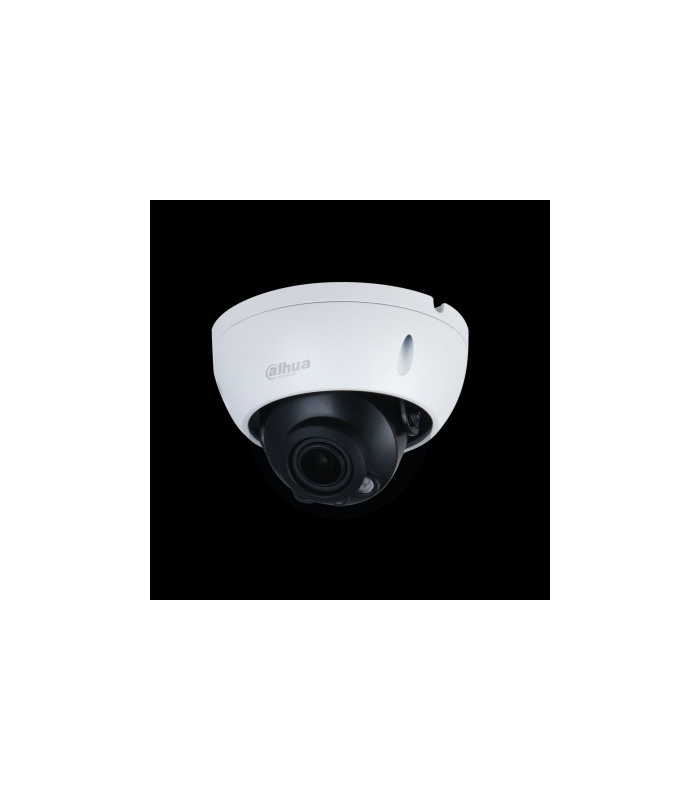

Dahua DH-IPC-HDBW2831RP-ZS-S2 8MP Vari-focal Dome Network Camera

Camera

Image Sensor

1/2.7” 8Megapixel progressive CMOS

Effective Pixels

3840 (H) × 2160 (V)

ROM

128 MB

RAM

256 MB

Scanning System

Progressive

Electronic Shutter Speed

Auto/Manual 1/3 s–1/100,000 s

Min. Illumination

0.008 Lux@F1.5

IR Distance

40 m (131.2 ft)

IR On/Off Control

Auto/Manual

IR LEDs Number

2

Pan/Tilt/Rotation Range

Pan: 0°–355°

Tilt: 0°–67°

Rotation: 0°–355°

Lens

Lens Type

Motorized vari-focal

Mount Type

φ14

Focal Length

2.7 mm–13.5 mm

Max. Aperture

F1.5

Field of View

Pan: 113°–31°

Tilt: 58°–17°

Diagonal: 138°–36°

Iris Type

Fixed

Close Focus Distance

0.8m–0.8m (2.62 ft–2.62 ft)

DORI Distance

Lens

Detect

Observe

Recognize

Identify

W

85.3 m

(279.9 ft)

34.1 m

(111.9 ft)

17 m

(55.8 ft)

8.5 m

(27.9 ft)

T

280 m

(918.6 ft)

112 m

(367.5 ft)

56 m

(183.7 ft)

28 m

(91.9 ft)

Smart Event

General IVS Analytics

Tripwire; intrusion

Video

Video Compression

H.265; H.264; H.264B; MJPEG

Smart Codec

Yes

Video Frame Rate

Main stream:

3840 × 2160 (1 fps–15 fps)

2688 × 1520 (1 fps–25/30 fps)

Sub stream:

704 × 576 (1 fps–25 fps); 704 × 480 (1 fps–30 fps)

Third stream: CIF@1fps

Stream Capability

3 streams

Resolution

3840 × 2160 (3840 × 2160); 3072 × 2048 (3072 × 2048); 3072 ×1728 (3072 × 1728); 2592 × 1944 (2592 × 1944); 2688 × 1520 (2688 × 1520); 3M (2048 × 1536); 2304 × 1296 (2304 × 1296); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240)

Bit Rate Control

CBR/VBR

Video Bit Rate

H.264: 32 Kbps–8192 Kbps

H.265: 12 Kbps–8192 Kbps

Day/Night

Auto(ICR)/Color/B/W

BLC

Yes

HLC

Yes

WDR

120 dB

White Balance

Auto/natural/street lamp/outdoor/manual/regional custom

Gain Control

Auto/Manual

Noise Reduction

3D DNR

Motion Detection

OFF/ON (4 areas, rectangular)

Region of Interest(RoI)

Yes (4 areas)

Smart IR

Yes

Image Rotation

0°/90°/180°/270° (Supports 90°/270° with 2688 × 1520 resolution and lower.)

Mirror

Yes

Privacy Masking

4 areas

Network

Network

RJ-45 (10/100 Base-T)

Protocol

IPv4; IPv6; HTTP; HTTPS; TCP; UDP; ARP; RTP ; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; 802.1x; Bonjour

Interoperability

ONVIF(Profile S/Profile G/Profile T); CGI; P2P; Milestone; Genetec

User/Host

20

Edge Storage

Dahua Cloud; FTP; SFTP; Micro SD Card (support max. 256 GB); NAS

Browser

IE

Chrome

Firefox

Management Software

Smart PSS; DSS; DMSS

Mobile Phone

IOS; Android

Certification

Certifications

CE-LVD: EN60950-1
CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU
FCC: 47 CFR FCC Part 15, Subpart B
UL/CUL: UL60950-1 CAN/CSA C22.2 No.60950-1-07

Power

Power Supply

12V DC/PoE (802.3af)

Power Consumption

< 7.4W

Environment

Operating Conditions

–30°C to +60°C (–22°F to +140°F)/less than ≤ 95% RH

Storage Temperature

–40°C to +60°C (–40°F to +140°F)

Protection Grade

IP67; IK10

Structure

Casing

Metal

Dimensions

Φ122 mm × 88.9 mm (Φ4.80″ × 3.50″)

Net Weight

0.47 kg (1.1 lb)

Gross Weight

0.63 kg (1.4 lb)
