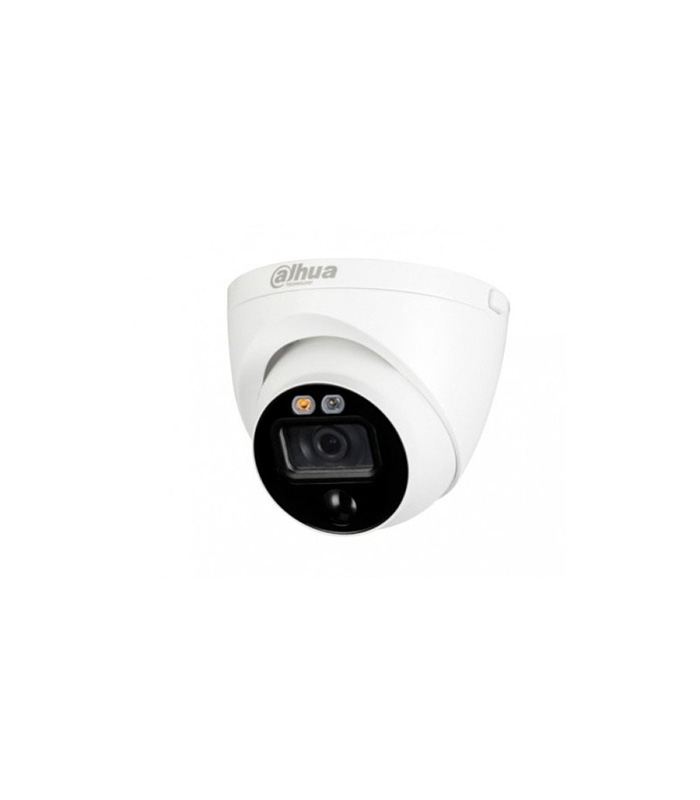

Dahua DH-HAC-ME1500EP 5MP Analog Active Deterrence Camera

• Max 20fps@5MP
• HD and SD output switchable
• 2.8mm fixed lens
• 10m/110° detecting range/angle
• Max. IR length 20m, Smart IR
• IP67, DC12V

Camera

• Image Sensor: 1/2.7″ CMOS
• Effective Pixels: 2592(H)×1944(V), 5MP
• Scanning System: Progressive
• Electronic Shutter Speed: PAL: 1/25~1/100000s NTSC: 1/30~1/100000s
• Minimum Illumination: 0.02Lux/F2.0(Color), 30IRE, 0Lux IR on
• S/N Ratio: More than 65dB
• IR Distance: Up to 20m (66feet)
• IR On/Off Control: Auto / Manual
• IR LEDs: 1
• Pan/Tilt/Rotation Range:
  – Pan: 0°–360°
  – Tilt: 0°–90°
  – Rotation: 0°–360°

Lens

• Lens Type: Fixed lens / Fixed iris
• Mount Type: Board-in
• Focal Length: 2.8mm (3.6mm Optional)
• Max. Aperture: F2.0
• Angle of View: H: 99° (77.5°) V: 72° (56.5°)
• Focus Control: N/A
• Close Focus Distance: 800mm(1400mm) 31”(55”)
• DORI Distance 3.6 mm Lens:
  – Detect: 2.8mm: 56m(184ft), 3.6mm: 80m(262ft)
  – Observe: 2.8mm: 22m(73ft), 3.6mm: 32m(105ft)
  – Recognise: 2.8mm: 11m(37ft), 3.6mm: 16m(52ft)
  – Identify: 2.8mm: 6m(18ft), 3.6mm: 8m(26ft)

Video

• Resolution: 5MP (2592×1944)
• Frame Rate: 20fps@5MP, 25/30fps@4MP, 25/30fps@1080P
• Video Output: 1-channel BNC high definition video output / CVBS video output (Can switch)
• Day/Night: Auto (ICR) / Manual
• OSD Menu: Multi-language
• BLC Mode: BLC / HLC / DWDR
• WDR: DWDR
• Gain Control: AGC
• Noise Reduction: 2D
• White Balance: Auto / Manual
• Smart IR: Auto / Manual

PIR

• Detection: Passive infrared
• Detection Range: 10m, 110°
• Alarm Prompt: White light
• White Light Mode: Alert / Lighting
• Installation height: Defualt bracket, wall mount, 2.2-3m

Certifications

• CE: (EN55032, EN55024, EN50130-4)
• FCC: (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014)
• UL: (UL60950-1+CAN/CSA C22.2 No.60950-1)

Interface

• Audio Interface: N/A

Electrical

• Power Supply: 12V DC ±30%
• Power Consumption: Max 4.6W (12V DC, IR on)

Environment

• Operating Conditions: -10°C ~ +50°C (+14°F ~ +122°F) / Less than 95% RH * Start up should be done at above -10°C (14°F)
• Storage Temperature: -10°C ~ +50°C (+14°F ~ +122°F) / Less than 95% RH
• Ingress Protection &Vandal Resistance: IP67

Structure

• Casing: Aluminium (Inner Core) + Plastic (Cover)
• Dimensions: Φ110mm×96.1mm(Φ4.33″×3.78″)
• Net Weight: 0.28kg (0.61lb)
• Gross Weight: 0.35kg (0.77lb)
