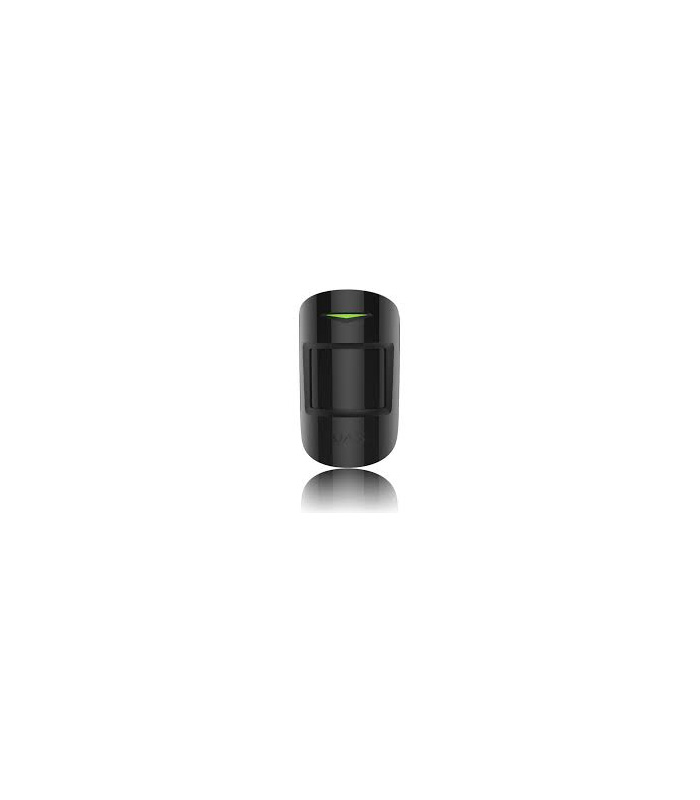

Ajax MotionProtect (8EU) ASP

A key element for intelligent security
Motion detectors form the core of security systems. Recognizing their pivotal role, we created MotionProtect Jeweller — a misleadingly simple yet powerful motion detector for optimal reliability and ease of use. Its cutting-edge hardware and software algorithms reduce the amount of false alarms to almost zero. With a sleek design, detectors are seamlessly integrated into any space. Installation is simplified with wireless capabilities and the SmartBracket mounting panel, while remote configuration eliminates the need for on-site visits to solve minor requests.

PIR sensor
All Ajax motion detectors use PIR sensors by Excelitas Technologies — a field-leading American manufacturer specializing in designing and producing optronic components since 1931. Ajax Systems constantly proves the sensor’s Superior quality at the production stage: we test 100% of manufactured devices. Wrapped into Ajax technologies, it brings the utmost accuracy of intrusion detection.

Special lens
The pattern of the Fresnel lens sections is designed to differentiate between the IR diagrams of a human, animal, and thermal noise. Large lens sections capture radiation at an adult’s head and torso level. Smaller sections make the diagram more detailed. The lens provides the detector with accurate information about the thermal object in the detection zone and the nature of its movement.

Thermal interferences filter
SmartDetect
We processed thousands of thermal patterns caused by humans, animals, and the environment to develop the SmartDetect software algorithm. In armed mode, the detector constantly analyzes the thermal diagram from the PIR sensor, including the IR radiation intensity, thermal spot size, movement speed, time spent in the detection zone, and other parameters. The algorithm identifies false alarm markers instantly and with high accuracy. As a result, the detector accurately responds to human movement without false alarms.

Temperature compensation
Temperature compensation is a software mechanism that keeps the thermal diagram contrast even if the ambient temperature is close to the temperature of the human body. With each ambient temperature measurement, the detector corrects the PIR sensor data according to the coefficient table stored in its memory. The detector is effective over the entire operating temperature range.

Sensitivity level
The detector can adapt to the conditions of a particular object, considering possible thermal interference or pets. The sensitivity setting changes the set of markers by which false alarms are filtered. Low sensitivity makes the detector less likely to respond to an active pet. A high sensitivity will raise the alarm in case of any movement in the detection zone.

Wire-free flexibility and reliable performance
Baseline devices operate without any wires, offering maximum flexibility during installation. The pre-installed CR123A batteries from proven manufacturers ensure hassle-free setup, requiring no additional steps to start operating the devices. In addition to real-time testing during battery production, Ajax Systems inspects every unit to ensure the accuracy of the batteries’ characteristics. The batteries are easily replaceable, allowing one to swap them out after approximately five years of autonomous operation. The battery status is always accessible via the Ajax app. Users and security companies receive low battery level warnings months in advance, allowing for timely replacement without rushing.
